How to read the pattern lock of Micromax A065 using Volcano Tool? here is the way through which you can read the pattern using Volcano tool/utility. If the phone has MTK CPU then Volcano tool can read the pattern style of the phone. To using this service the phone should be in pattern lock condition, that means on pattern lock screen not on the forgot pattern screen asking Email id and password.
Micromax A065 Read Pattern Lock
Open Volcano tool
Go to Android Tab
Select Read Info
Click Start
Connect the switched off phone with battery to PC using USB Cable
Wait till the process finish
At last you will get the pattern lock style in visual and in Numeric.
 |

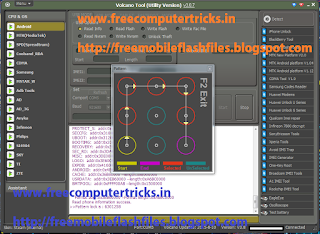

| Micromax a065 Read Pattern lock Done With Volcano TOol |
Micromax A065 Read Pattern Log Volcano Tool:
Analysis of USB port,Please insert phone USB cable.
Connecting...
CPU TYPE:MT6571
Hardware version:CA00
Software version:0000
SecCfgVal :0x00000000
BromVersion :0xFF
BLVersion :0x01
Boot downloading complete!
EMMC_ID:0x7001004D4D43303447583F289969B111
EMMC_PRODUCT_NAME: SAMSUNG :0x4D4D43303447
EMMC_BOOT1_SIZE: 0x00200000
EMMC_BOOT2_SIZE: 0x00200000
EMMC_PRMB_SIZE: 0x00020000
EMMC_GP1_SIZE: 0x00000000
EMMC_GP2_SIZE: 0x00000000
EMMC_GP3_SIZE: 0x00000000
EMMC_GP4_SIZE: 0x00000000
EMMC_USER_SIZE: 0x0E6800000(3.60 G)
Connecting...
CPU TYPE:MT6571
Hardware version:CA00
Software version:0000
SecCfgVal :0x00000000
BromVersion :0xFF
BLVersion :0x01
Boot downloading complete!
EMMC_ID:0x7001004D4D43303447583F289969B111
EMMC_PRODUCT_NAME: SAMSUNG :0x4D4D43303447
EMMC_BOOT1_SIZE: 0x00200000
EMMC_BOOT2_SIZE: 0x00200000
EMMC_PRMB_SIZE: 0x00020000
EMMC_GP1_SIZE: 0x00000000
EMMC_GP2_SIZE: 0x00000000
EMMC_GP3_SIZE: 0x00000000
EMMC_GP4_SIZE: 0x00000000
EMMC_USER_SIZE: 0x0E6800000(3.60 G)
Analysis of system files...
PRELOADER: addr:0x000000 --length:0x1400000
MBR: addr:0x1400000 --length:0x080000
EBR1: addr:0x1480000 --length:0x080000
PRO_INFO: addr:0x1500000 --length:0x300000
NVRAM: addr:0x1800000 --length:0x500000
PROTECT_F: addr:0x1D00000 --length:0xA00000
PROTECT_S: addr:0x2700000 --length:0xA00000
SECCFG: addr:0x3100000 --length:0x020000
UBOOT: addr:0x3120000 --length:0x080000
BOOTIMG: addr:0x31A0000 --length:0x600000
RECOVERY: addr:0x37A0000 --length:0x600000
SEC_RO: addr:0x3DA0000 --length:0x040000
MISC: addr:0x3DE0000 --length:0x080000
LOGO: addr:0x3E60000 --length:0x300000
EXPDB: addr:0x4160000 --length:0xA00000
ANDROID: addr:0x4B60000 --length:0x32000000
CACHE: addr:0x36B60000 --length:0x8000000
USRDATA: addr:0x3EB60000 --length:0xA6BC0000
BMTPOOL: addr:0xFFFF00A8 --length:0x1500000
Format addr:0x3EB60000 --Format length:0xA6BC0000
Read phone information success.
>>Pattern lock is : 6301258
Read phone information success.
>>Pattern lock is : 6301258
